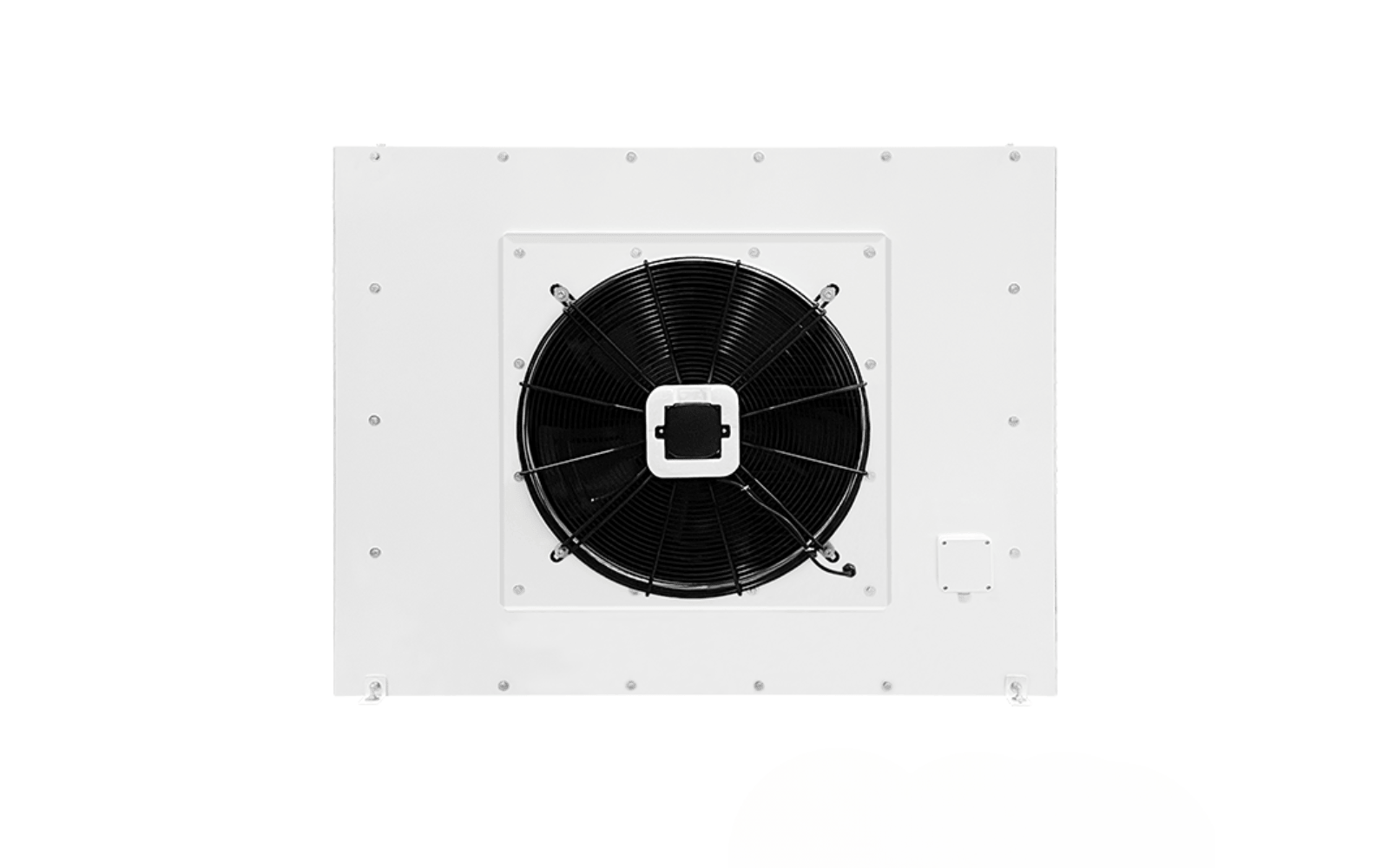

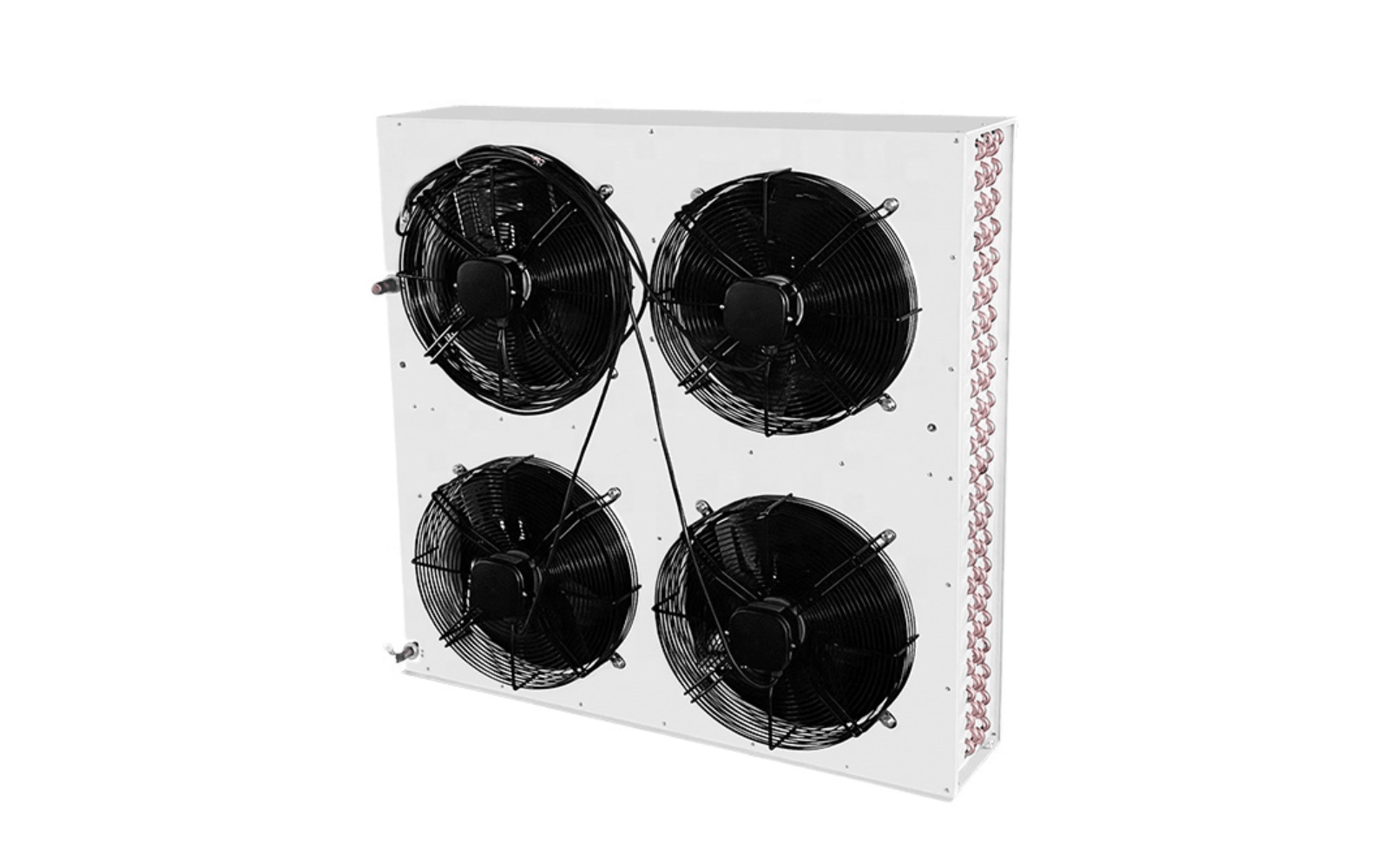

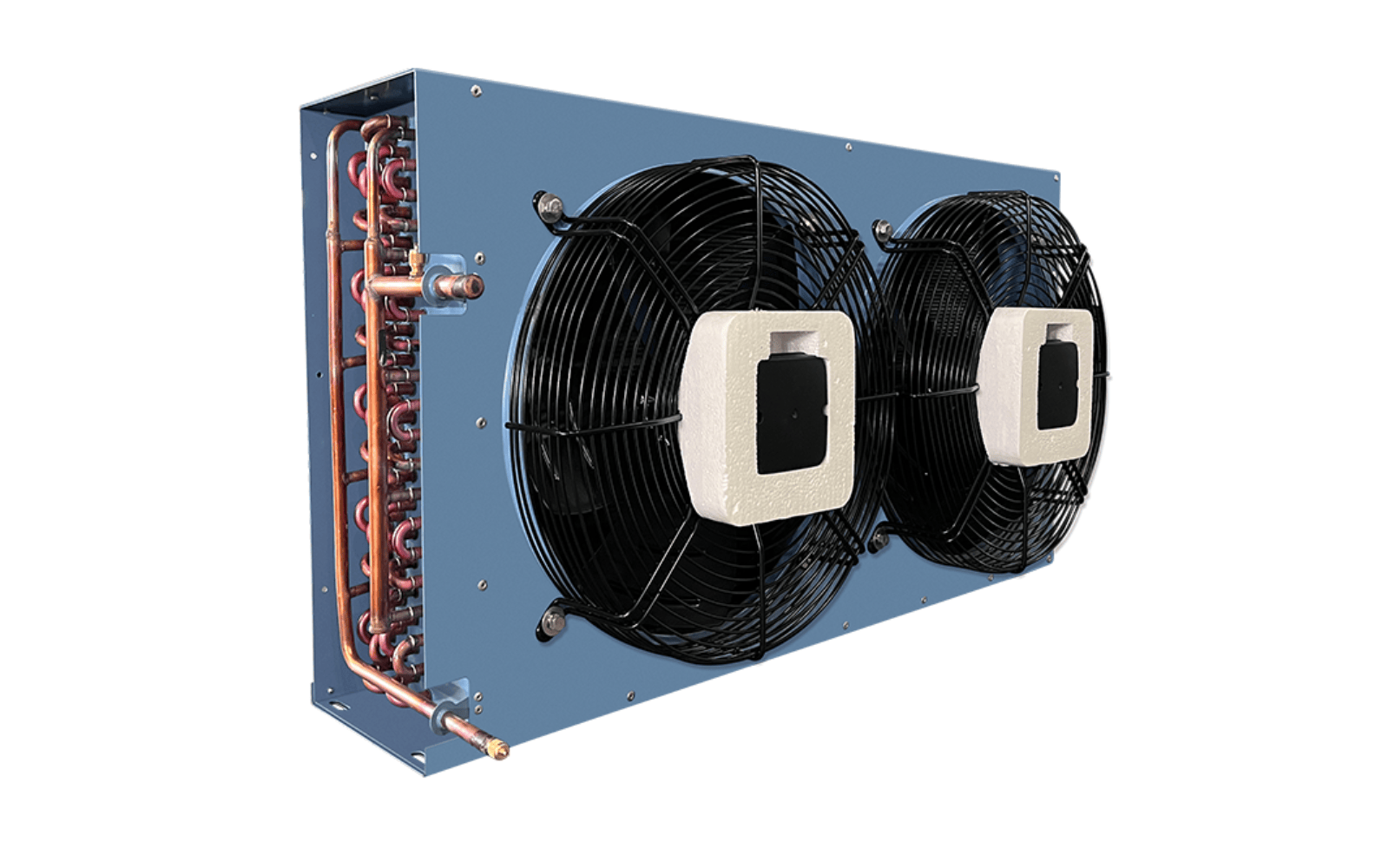

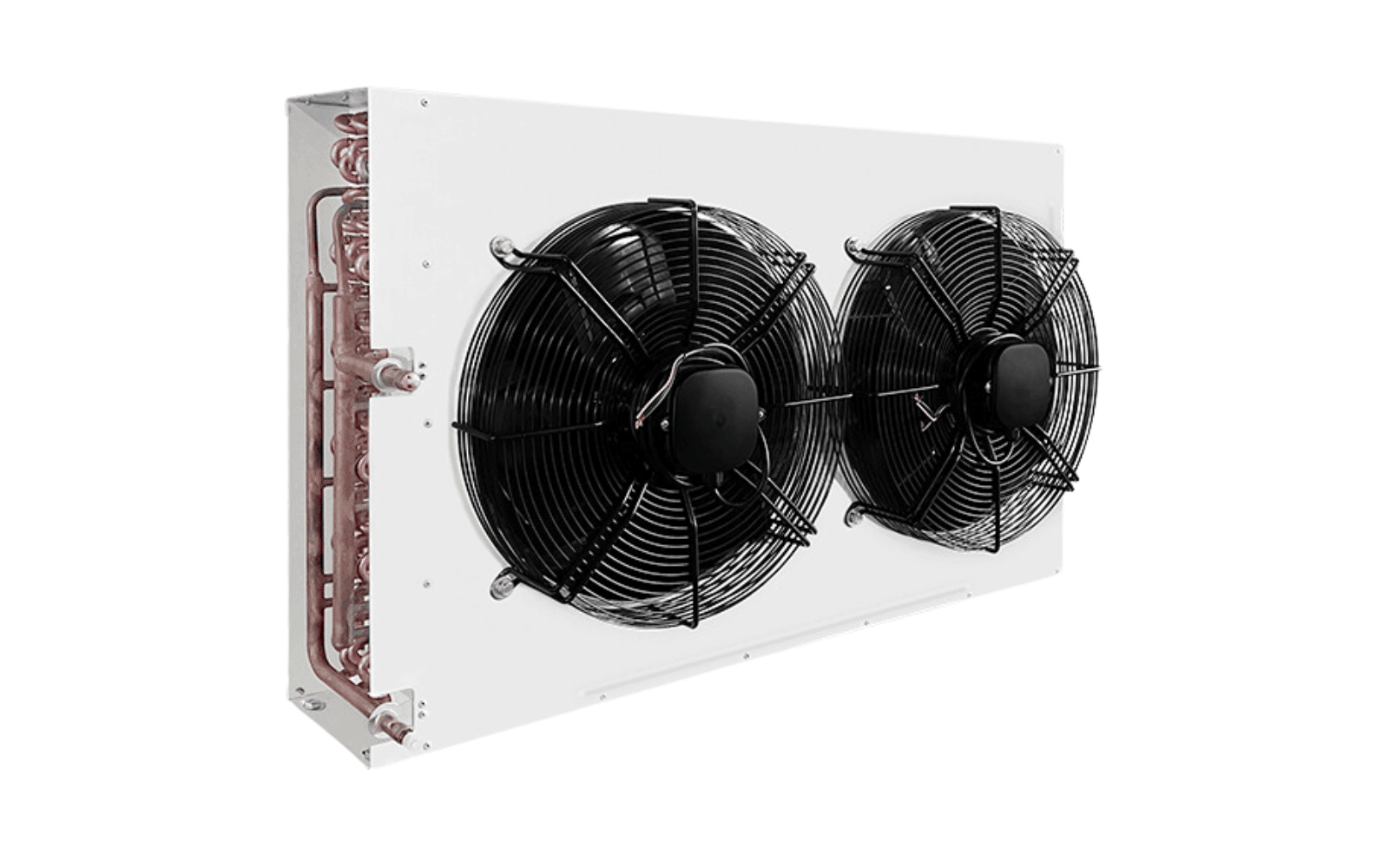

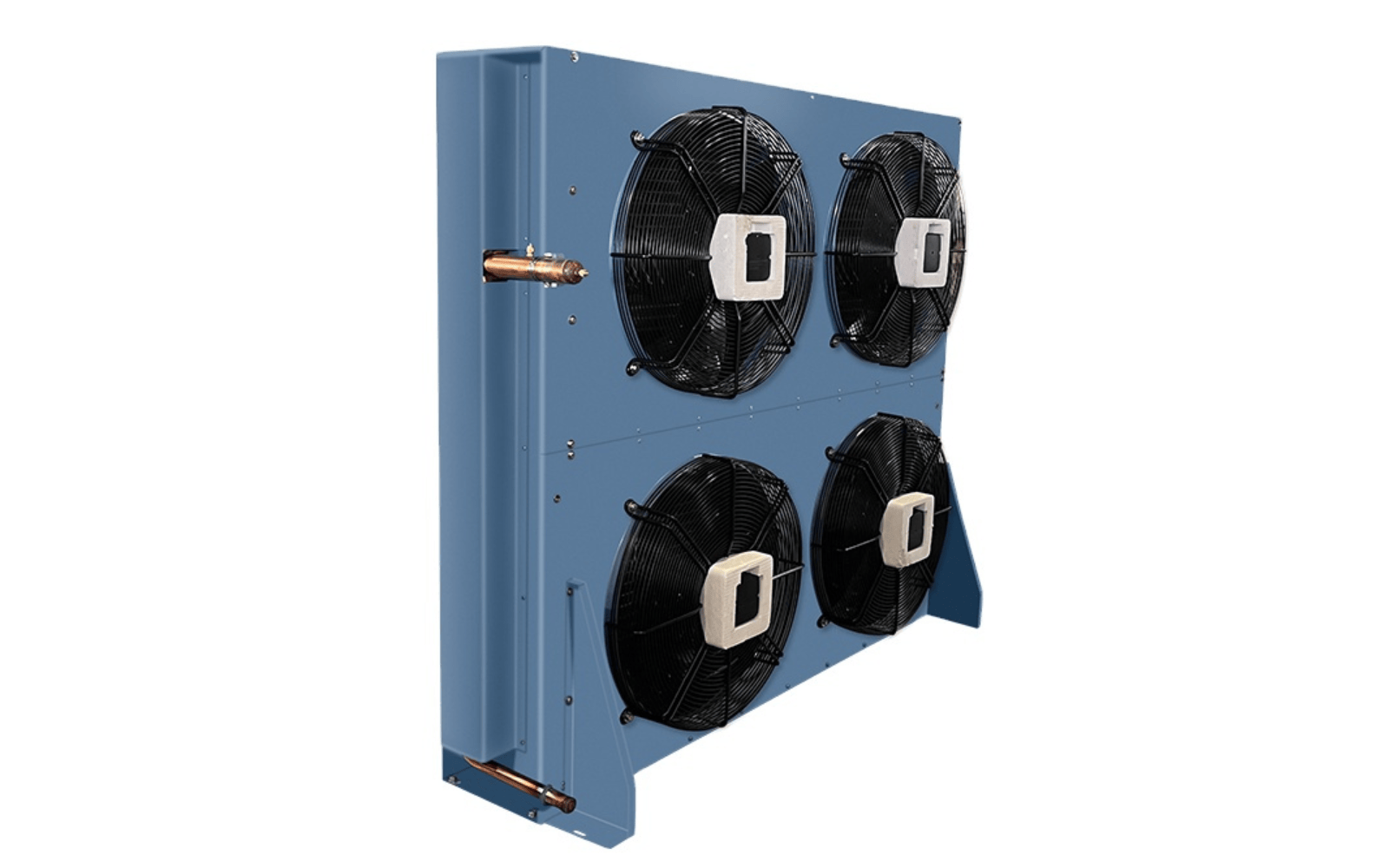

H-Type Compact Vertical Air Cooled Condensers

ICEDSEA H-type compact vertical air cooled condensers are primarily used with open-type condensing units featuring scroll compressors, hermetic and semi-hermetic compressors. The condensers can be installed together with the compressors or separately. These condensers are designed with the latest condenser technology to provide low sound level, efficient performance and reduced maintenance for commercial and industrial cooling applications.

Features:

* Protection class IP44/IP54 external rotor fan motors are compliant with CE certification

*Fan motors have sealed deep-groove ball bearings with permanent lubrication and thermal or electronic protection

*Horizontal air discharge

* Floating coil design helps to avoid coil leaks caused by thermal expansion and contraction

*CE certified, compatible with multiple refrigerants, R404A, R22, etc.

*Outdoor galvanized steel housing with UV-resistant and anti-corrosion powder coating

*Models range from 5 to 53.1 KW

Options:

Casing：Spray galvanized sheet, 304 stainless steel plate, spray aluminum plate, spray steel plate

Fin ：Aluminum fin, coated aluminum fin, copper fin

Coil：Multiple selection of Copper pipe diameter and structure

Motor：Optional with German brand or energy-saving EC motor fans, and also are available with high-efficiency or low-noise series according to environmental needs

Color：Normal is white. Customized services are available

Custom specification products can be manufactured based on your samples and drawings.

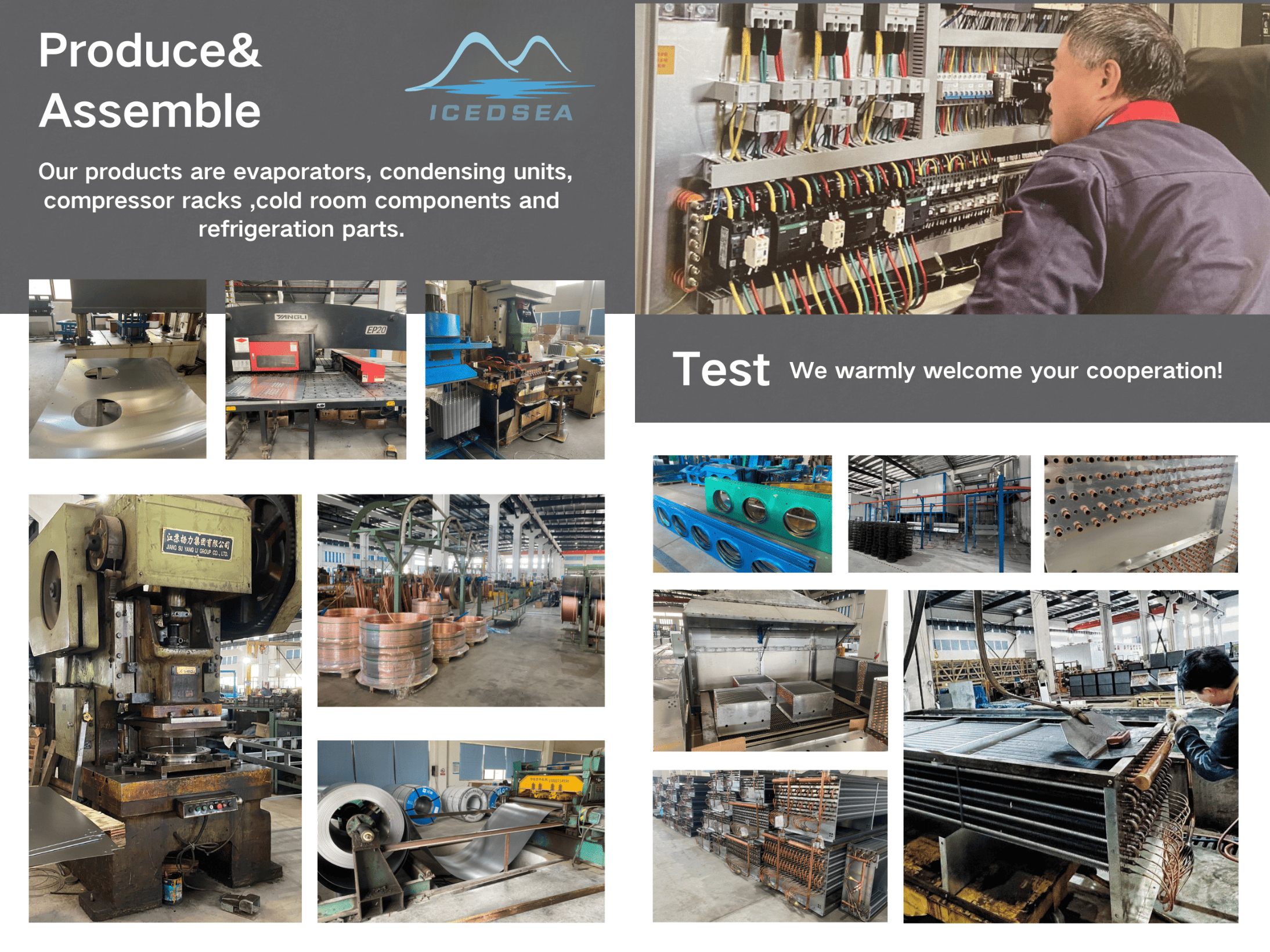

Production Process

Air cooled condensers serve as an important role that engineered component in the refrigeration system, used a series of fans to move large amounts of air over condensing coils. The units are ideal for supermarket, industrial cooling and commercial warehousing industries. The variety of models with flexible temperature choices available gives our OEM customers the ability to provide perfect refrigeration solutions to match any application for customers' unique needs.

Why Choose Us

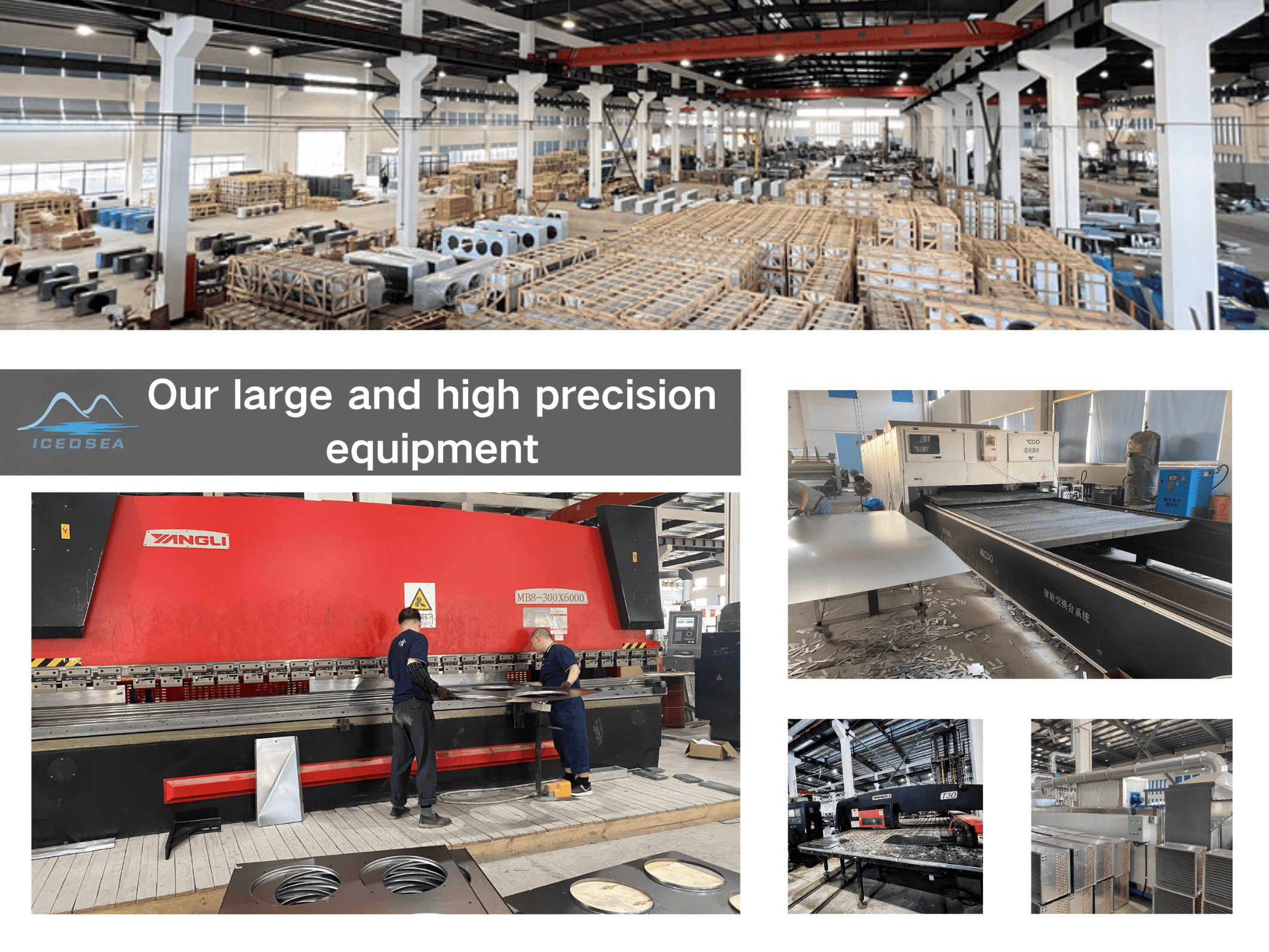

Our current factory covers an area of over 50,000 square meters, with more than 100 workshop workers, 6 quality management staff, 8 management personnel, over 10 technicians, and 5 warehouse management and container loading personnel, passed ISO 9001:2015 certification, CE certification, and over 30 invention patents.

We regularly conduct pre-production training for our workers. During the production process, our experienced management team continuously performs inspections to ensure that production procedures strictly adhere to standards.

We have a dedicated after-sales service team that will confirm and respond to customer feedback within 24 hours, ensuring that issues are quickly and properly resolved for end consumers.
