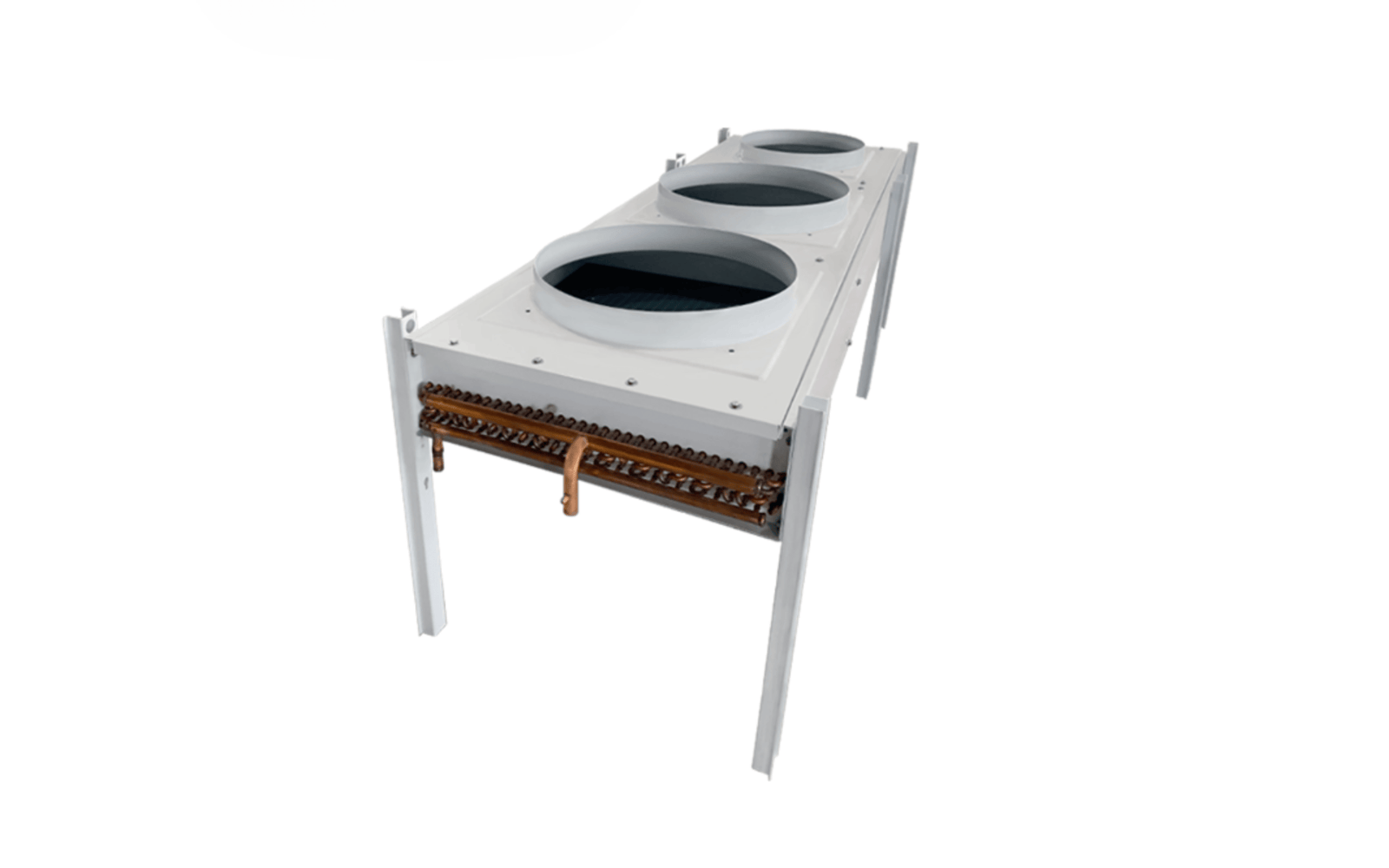

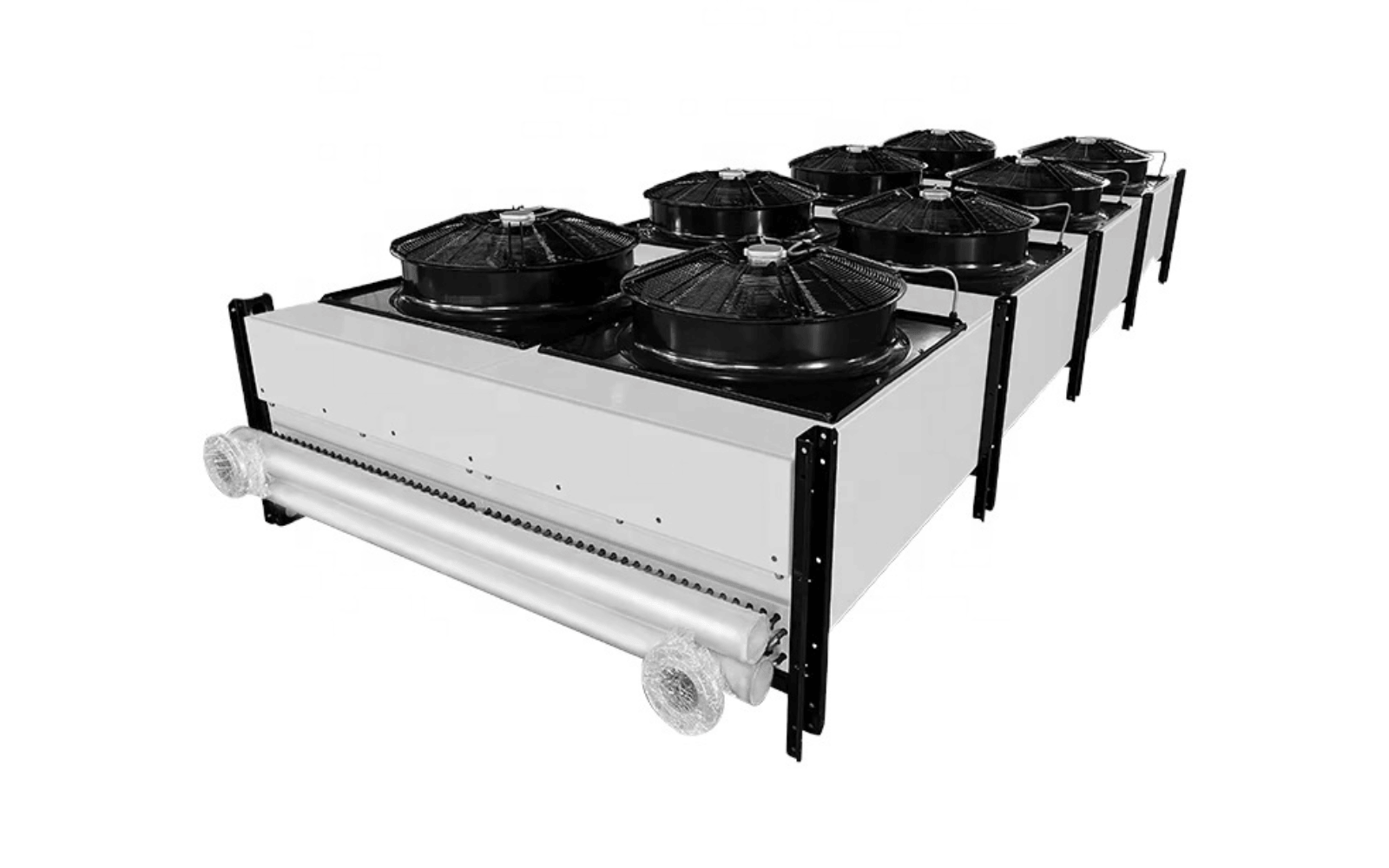

Table-Type High-efficiency Air Cooled Condensers

ICEDSEA table-type air cooled condensers are the ideal refrigeration solution for supermarket, commercial warehousing and industrial cooling industries.The units provide excellent performance, long service life, high energy efficiency and minimized sound output. Models are available with 2 to 8 fans in single or double wide configurations with vertical or horizontal air discharge, these will help to meet our customers’ unique requirements in any application.

Features:

* Protection class IP44/IP54 external rotor fan motors are compliant with CE certification

*Fan motors have sealed deep-groove ball bearings with permanent lubrication and thermal or electronic protection

* Vertical air discharge

*Floating coil design helps to avoid coil leaks caused by thermal expansion and contraction

*CE certified, compatible with multiple refrigerants, R404A, R22, etc.

*Outdoor galvanized steel housing with UV-resistant and anti-corrosion powder coating

*Models range from 36 to 306.3KW

Options:

Casing：Spray galvanized sheet, 304 stainless steel plate, spray aluminum plate, spray steel plate

Fin ：Aluminum fin, coated aluminum fin, copper fin

Coil：Multiple selection of Copper pipe diameter and structure

Motor：Optional with German brand or energy-saving EC motor fans, and also are available with high-efficiency or low-noise series according to environmental needs

Color：Normal is white. Customized services are available

Custom specification products can be manufactured based on your samples and drawings.

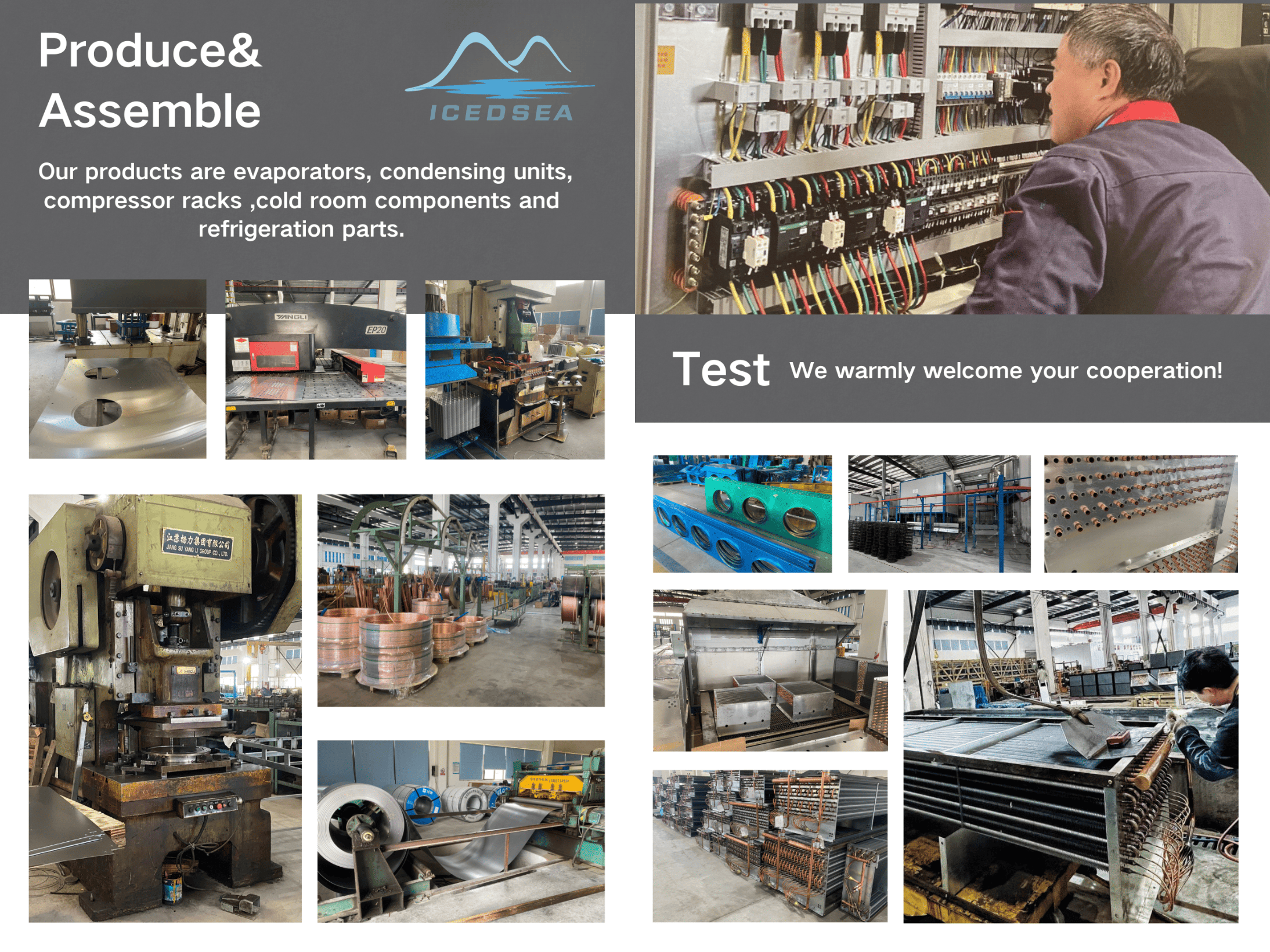

Production Process

Air cooled condensers serve as an important role that engineered component in the refrigeration system, used a series of fans to move large amounts of air over condensing coils. The units are ideal for supermarket, industrial cooling and commercial warehousing industries. The variety of models with flexible temperature choices available gives our OEM customers the ability to provide perfect refrigeration solutions to match any application for customers’ unique needs.

Why Choose Us

With support of our specialists and engineers, we are always working to make efforts to provide one-stop perfect services for refrigeration systems to worldwide customers, including air coolers/evaporators, air cooled condensers, air-cooled/water-cooled condensing units and compressor racks.

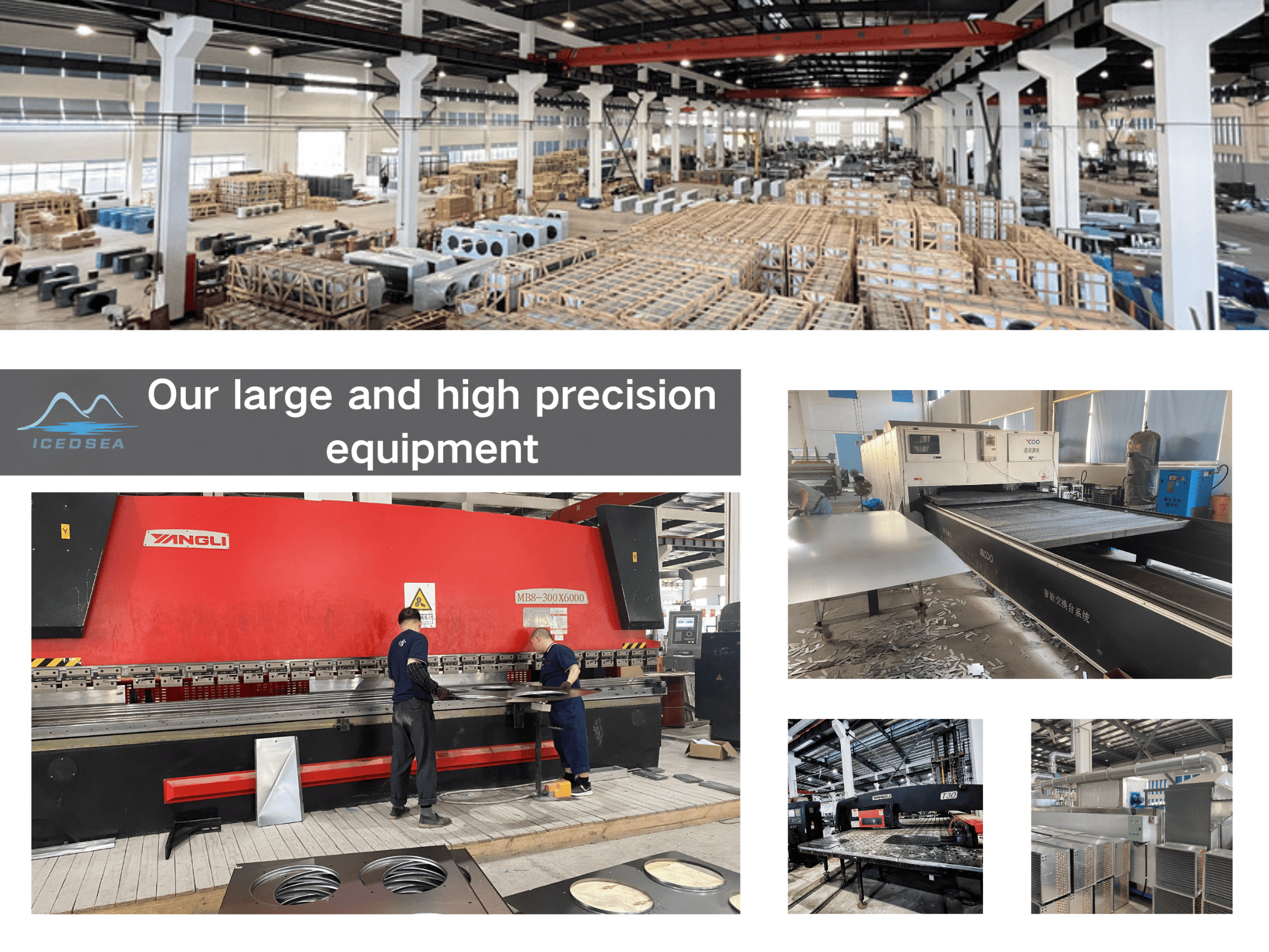

Our current factory covers an area of over 50,000 square meters, with more than 100 workshop workers, 6 quality management staff, 8 management personnel, over 10 technicians, and 5 warehouse management and container loading personnel, passed ISO 9001:2015 certification, CE certification, and over 30 invention patents.

We sincerely look forward to earning your trust, having the opportunity to work with you, and establishing a long-term business relationship.
